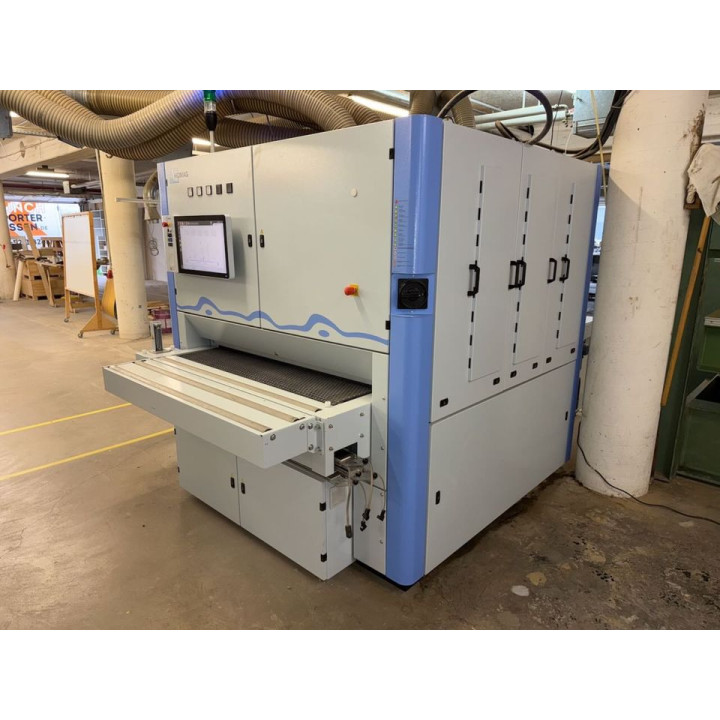

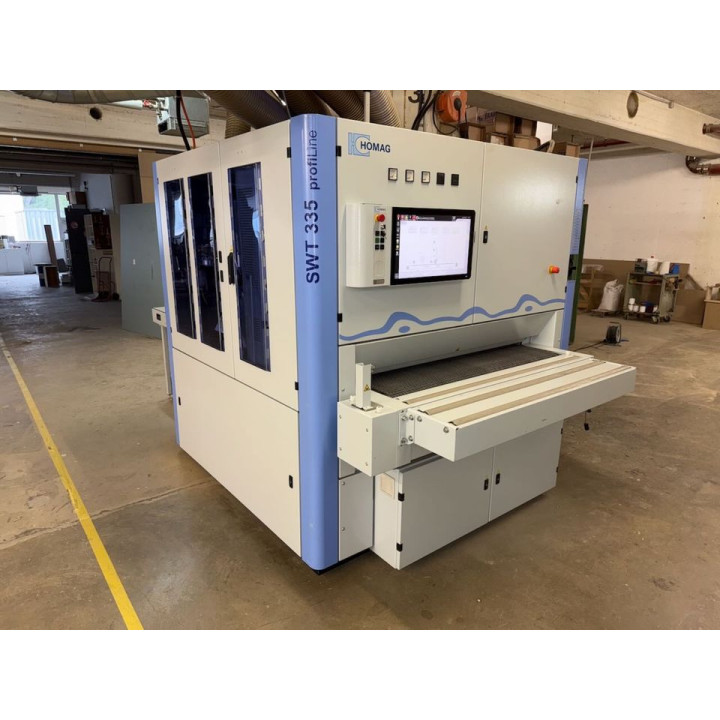

BÜTFERING SWT335/ QXU

For Sale: Wide Belt Sanding Machine

• Operating hours: 361.69 h

• Working width: 1,350 mm

• Sanding belt width:

  • Wide belt: 1,350–1,380 mm

  • Wide belt H/X: 1,370 mm

  • Cross belt: 150 mm

• Belt change side: Left

• Working height: 900 mm

• Material thickness: 3–160 mm

• Feed speed: 2.5–13 m/min

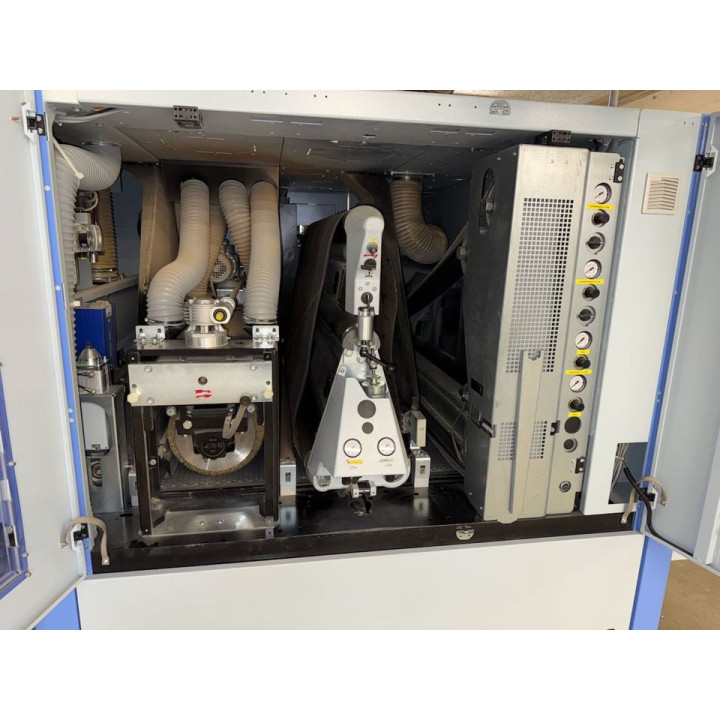

Units / Aggregates:

1. Cross unit (1350 mm, T3/5)

   • Frequency-controlled cutting speed: 2–16 m/s

   • MPS 2.0 Plus electromagnetic pressure bar

   • Motor: 13.5 kW

2. X-unit (1350 mm, T3/5)

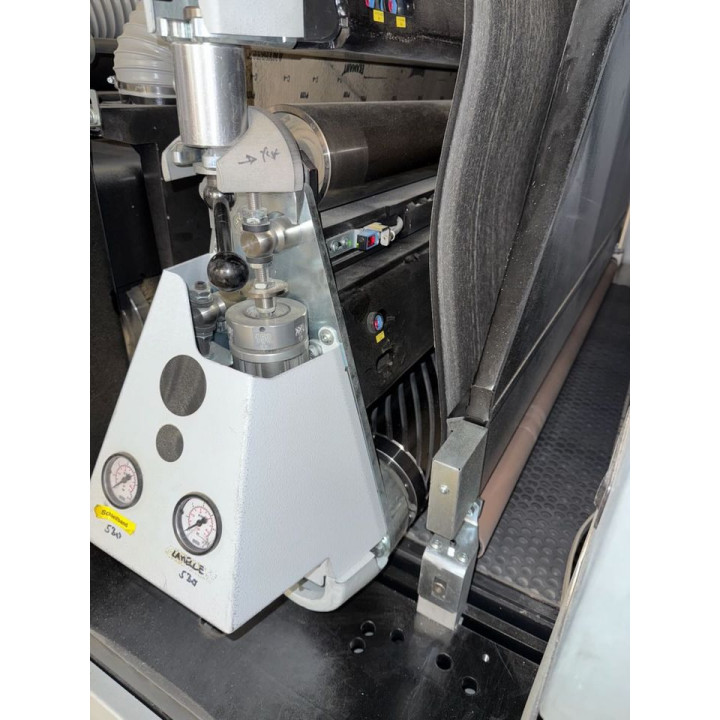

   • Lamella belt & steel contact roller

   • Calibration, veneer & coating sanding options

   • Frequency-controlled cutting speed: 2–18 m/s

   • Motor: 18.5 kW

3. U-unit (1350 mm, T3/S/7/9)

   • Interchangeable round and disc brushes

   • Brush depth adjustable via terminal

   • Oscillation: 36–240 strokes/min

   • Motor: 15 kW

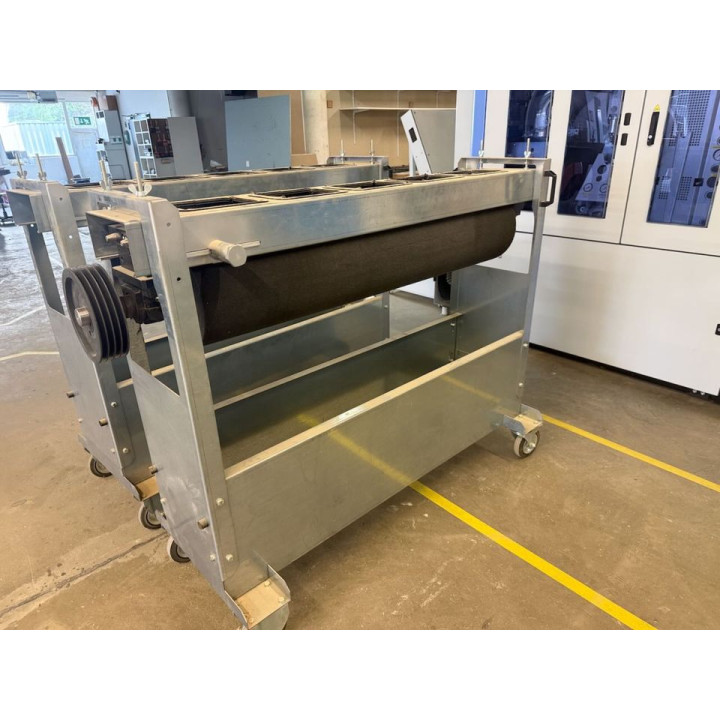

   • 2 service carts, 1 × 300 mm structuring brush, 1 × 300 mm satin brush

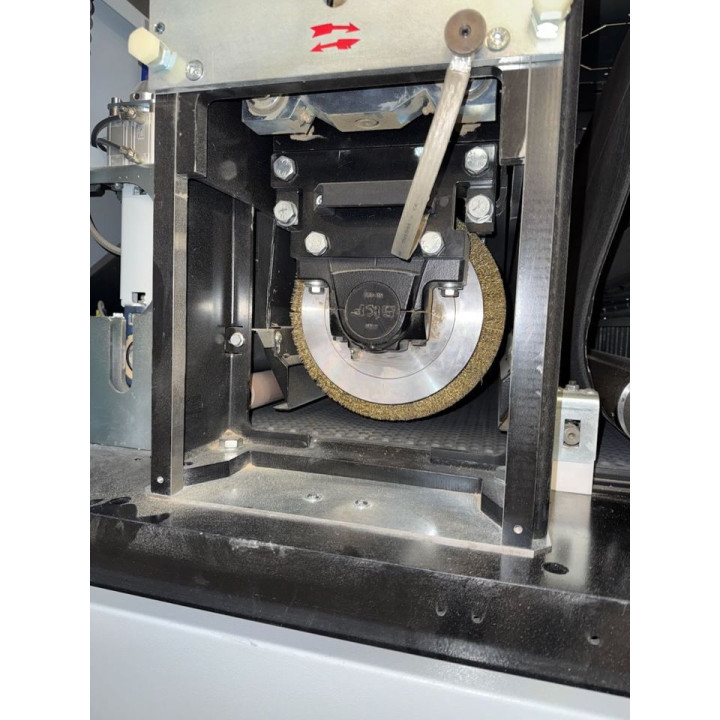

4. Brush unit – structuring brush

   • Motor: 5.5 kW

   • Brush fill: Anderlon K 80

   • Diameter: 150 mm

Additional Features:

• Integrated cleaning system with 16 rotating nozzle ionization

• Sanding belt size: 1,370 × 2,150 mm

• Integrated 5.5 kW vacuum blower and vacuum system

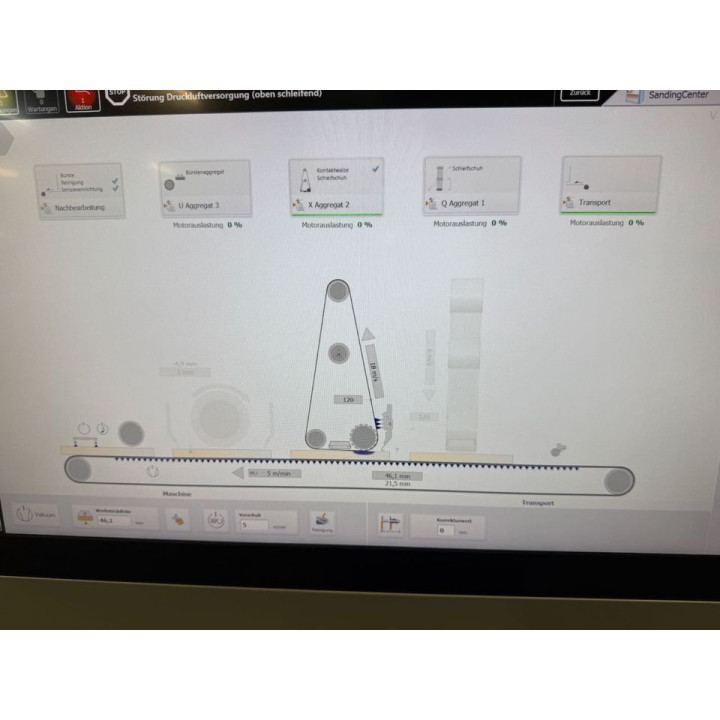

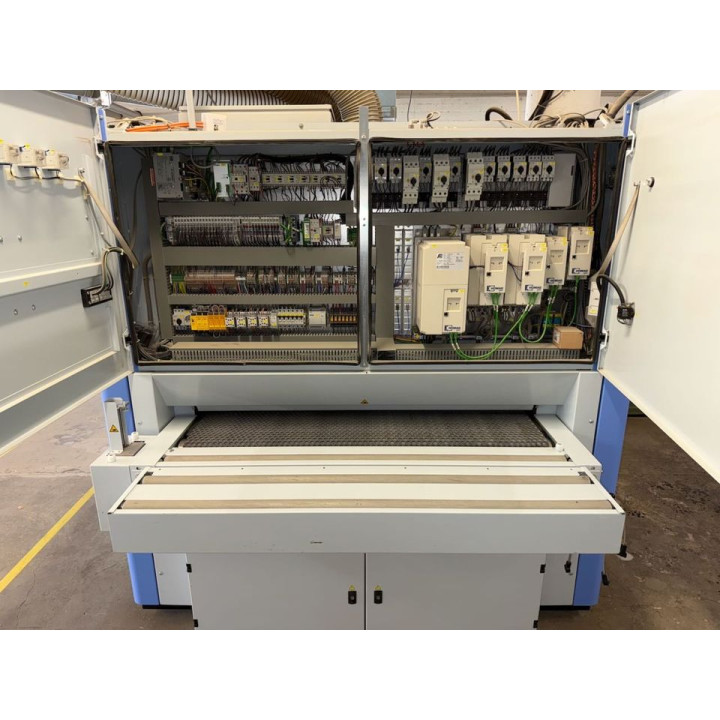

• Terminal touch screen control

• 2 roller conveyors, 3,000 × 1,300 mm each

• Various sanding belts P24–P100 (approx. 50 pcs)

• Dust extraction piping and 6-arm movable sanding belt holder

• Electrical: 400 V, 50 Hz

• Machine dimensions: 2,566 × 2,100 × 2,415 mm

• Weight: 5,500 kg

Machine is fully functional and ready for production.
