Homag BAZ 211/60/K Venture 21XXL PowerEdge

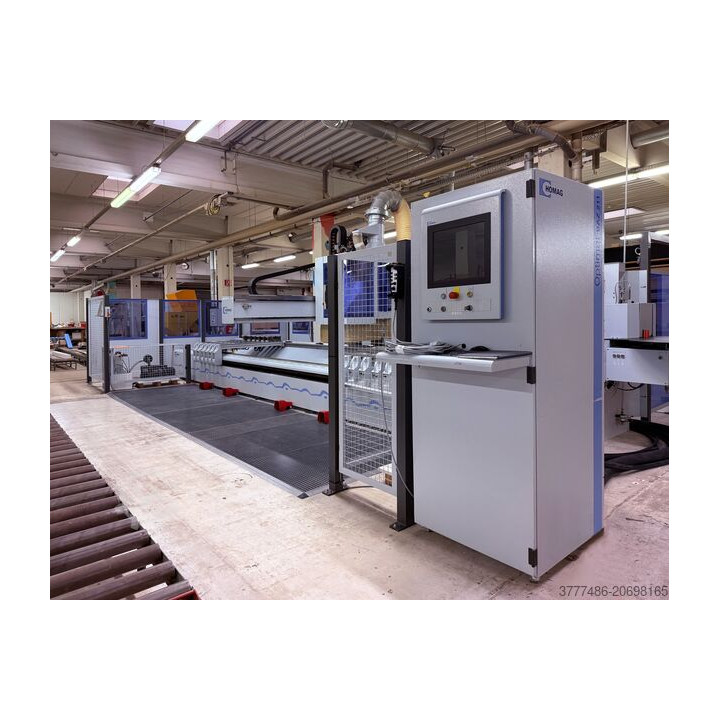

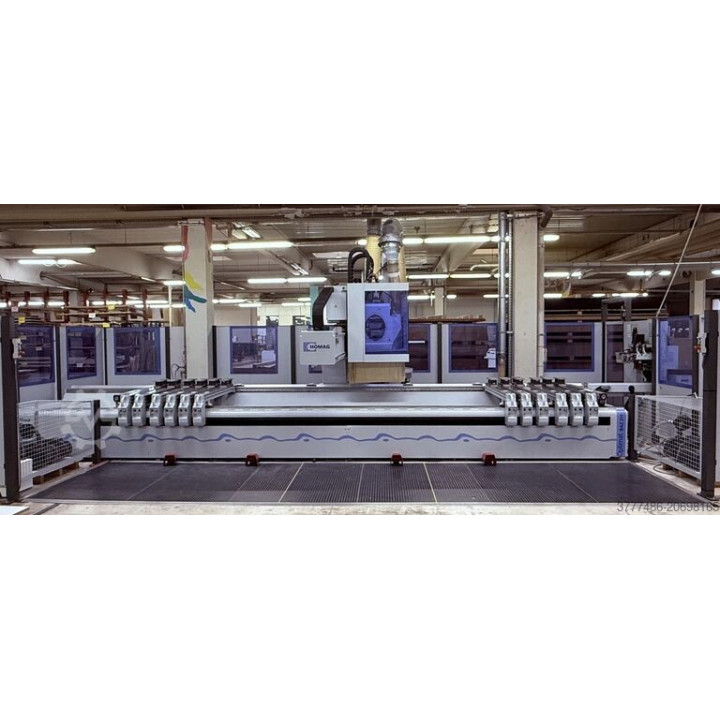

Homag CNC Machining Centre BAZ 211/60/K Venture 21 XXL with 6 m machining length, PowerEdge edgebanding unit, renewed vacuum pumps, Windows 10 and WoodWOP 8.1 in excellent condition:

– Workpiece length: 6000 – 6175 mm
– Pendulum operation: 2375 – 2550 mm
– Workpiece width: 1400 – 1550 mm
– Max. workpiece thickness: 300 mm
– Working height: 950 mm (underside of workpiece)

– Upgrades I 2023:

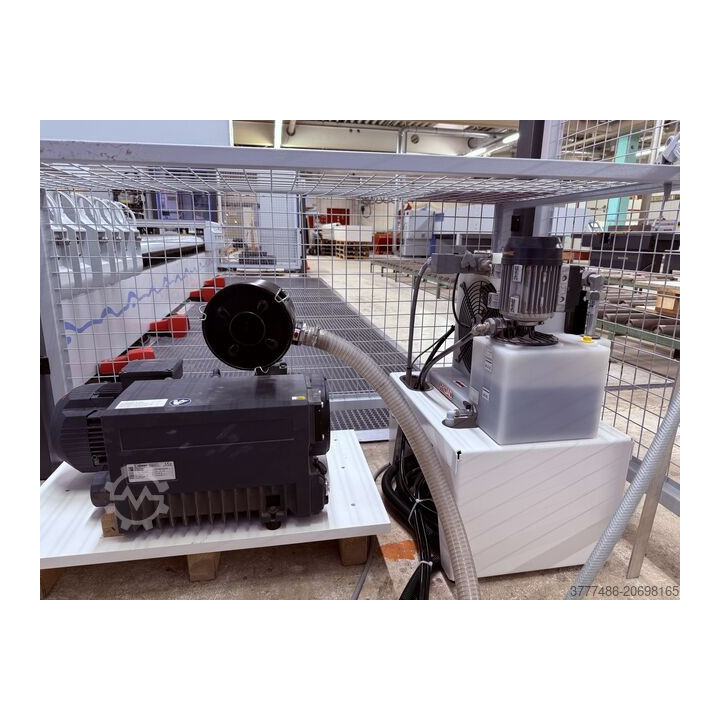

– 2 new oil-lubricated rotary vane vacuum pumps
– Capacity 2 x 63 m³/h = 126 m³/h
– Retrofit kit for separate cooling unit for main spindle

– Upgrades II 2024:
– New machine PC with Windows 10 operating system

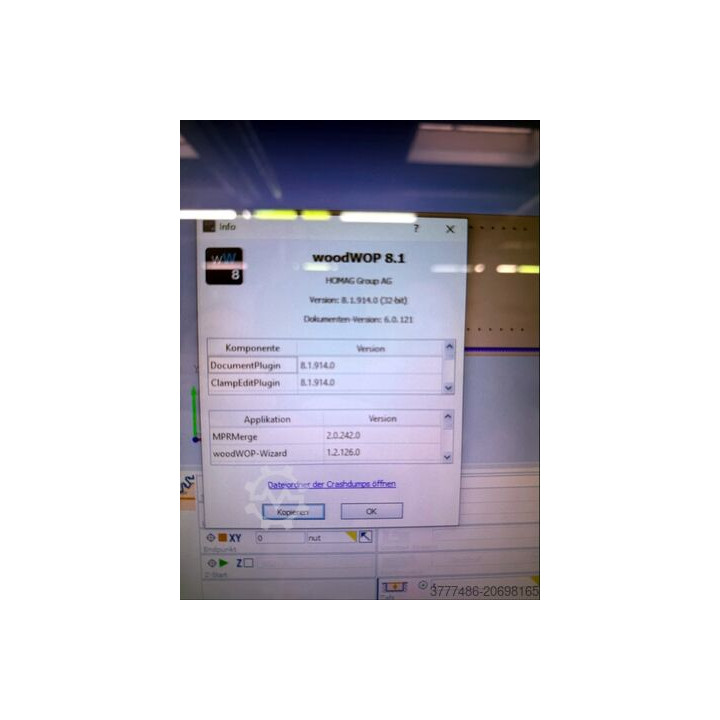

– Upgrade to WoodWOP 8.1

– 4-axis CNC machining centre

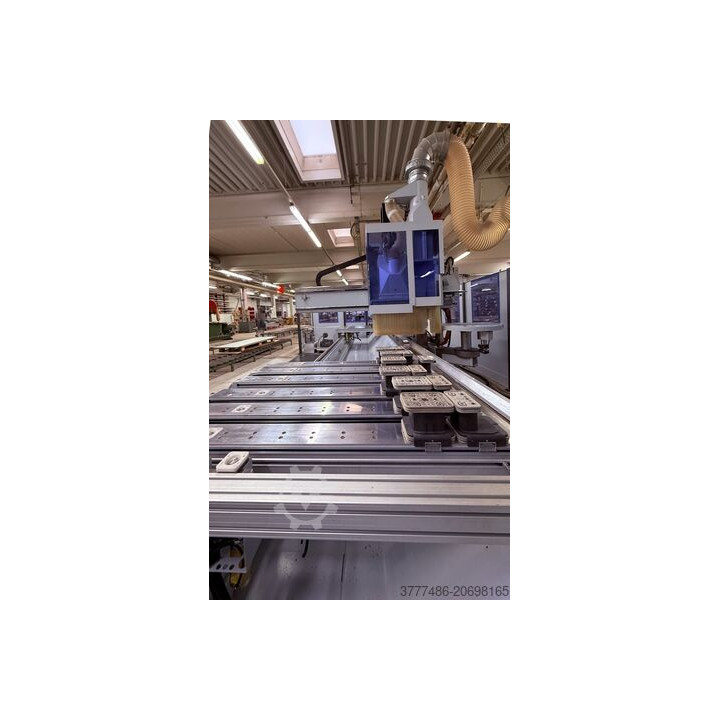

– "K" console table

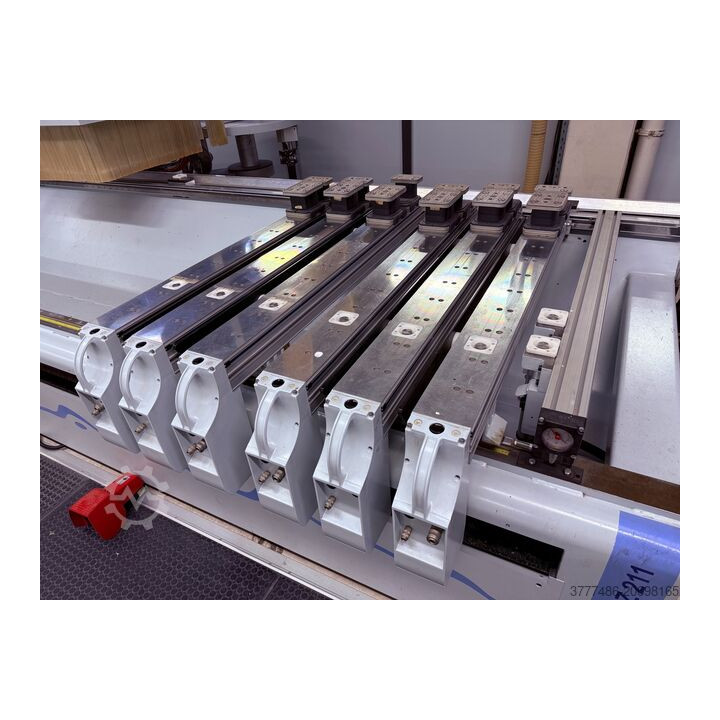

– 10 consoles incl. front stop
– 6 rear stops
– 6 lifting rails
– 2 each side stops left/right (mirrored)
Dlebkox Dzbzolrm Uxja
– 2 pneumatic connections per machining station
– 2 vacuum connections for templates
– C-axis with aggregate and electronic interface
– Safety equipment with anti-slip mats

– Main spindle 18.5 kW, vector controlled
– Liquid cooling for main spindle

– 10+18-Position disc tool changer:
– 10-position disc changer travels with main spindle
– 18-position disc changer travels with X-support

– MPU drilling head: 30 spindles (V20 / H10 / S360°)
– MultiProcessingUnit with C-axis +/- 185°
– 20 vertical HighSpeed spindles
– 10 horizontal spindles
– Grooving and trimming saw, 200 mm

– PowerEdge 360° edgebanding unit
– Pick-up position, travels with X-support
– Edgebanding thickness 0.4-3 mm
– Edge height max. 65 mm
– 360° jointless edgebanding

– Pre-trimming station and single roller for PowerEdge
– Hot air nozzle for edgebander

– Combined flush-trimming/finishing unit WD 60 mm
– Flush trimming of edge overhangs
– Final finishing of pre-trimmed edges
– For tool change in main spindle
– Probe system to compensate workpiece tolerances
– 2 WPL radius cutter heads
– 2 profile knives for finishing unit

– C-axis extension for Flex-5 unit

– 10 LED position indicator systems (console)
– Optical LED display for positioning clamps and consoles

– 4-way clamping with 2 x 2 clamping positions
– Separate vacuum systems
– Console for adjustable side stop (plug-in)
– 2 additional side and longitudinal stops
– 2 additional 1300 mm clamping consoles
– 2 additional side and longitudinal stops
– 2 additional lifting rails for console table

– 12 vacuum clamps 160x115x100 mm
– 10 vacuum clamps 125x75x100 mm

– Saw/drill unit: 2 spindles for tool changer
– Saw blade diameter up to 240 mm

– Safety enclosure left side wall
– Safety enclosure rear wall
– Safety enclosure left side wall

– Year of manufacture: 2008, first owner, very well maintained
– Regularly serviced
– No maintenance backlog or significant defects
– For sale ex location Karlsruhe / Southern Germany
– Machine is still connected and fully functional
– Inspection and test operation possible by arrangement.
