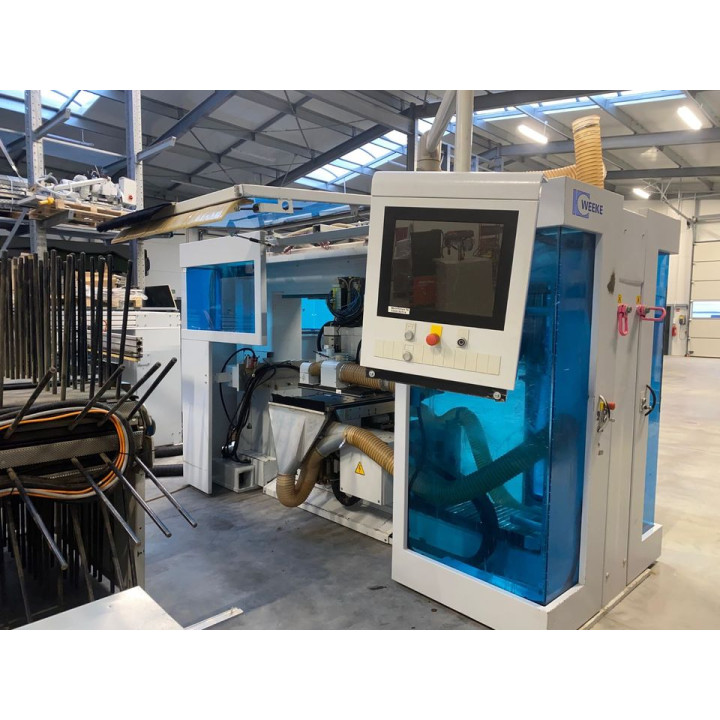

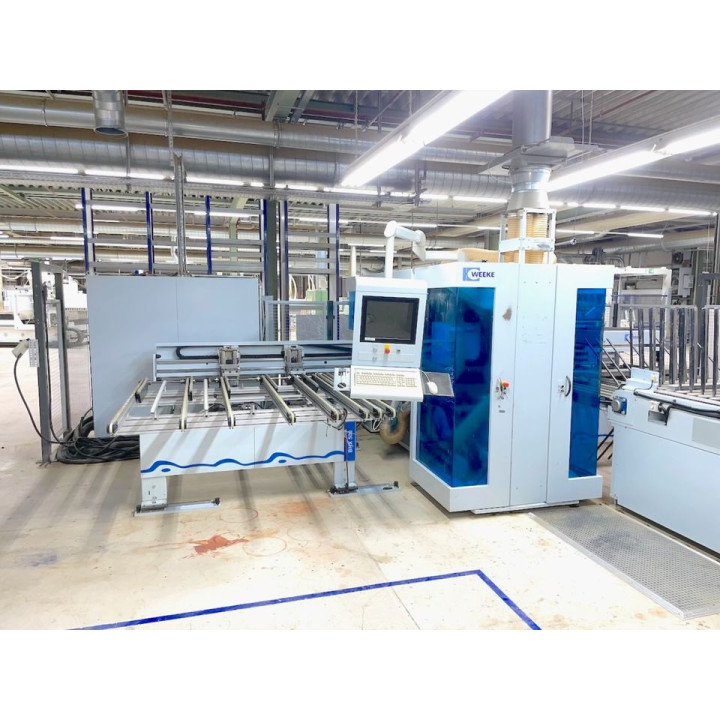

WEEKE OPTIMAT BHX 500, Bj. 2007

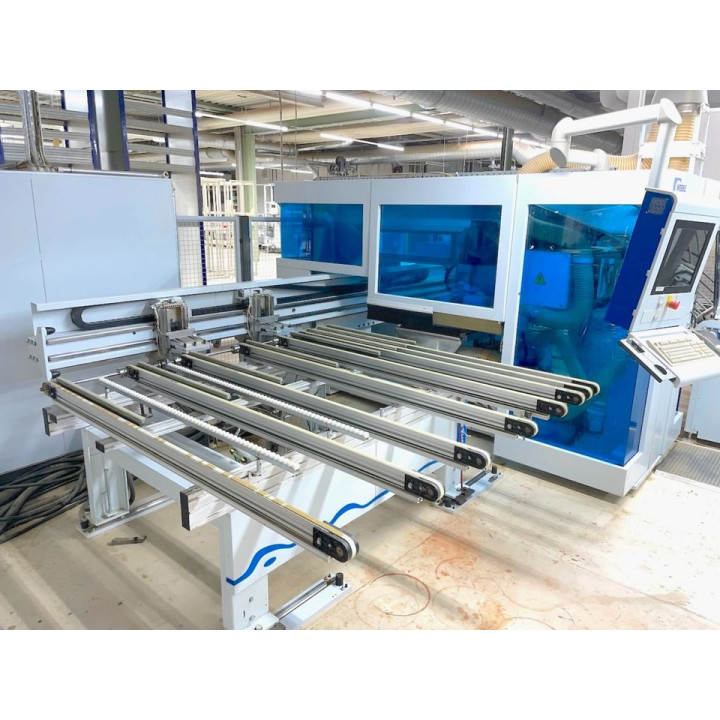

For Sale: CNC Machining Center – WEEKE OPTIMAT BHX 500 (Year 2007)

This machine is a fully functional CNC machining center suitable for furniture parts and wood processing, including the material loading “IGeL-ROBOT”.

Technical Specifications:

• Year of Manufacture: 2007

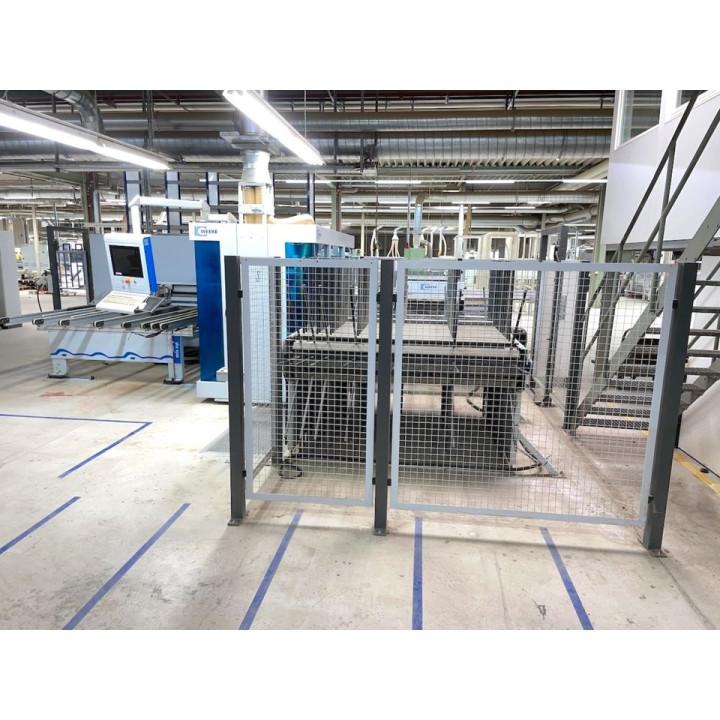

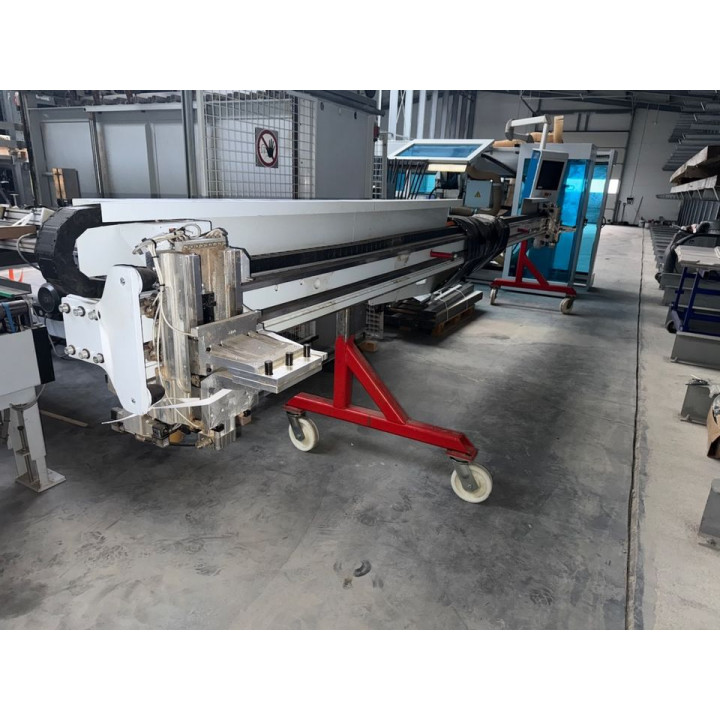

• Material Loading: IGeL-ROBOT

• Processing support: Upper and lower

• Workpiece dimensions:

  • Length: 250 – 2,500 mm

  • Width: 70 – 1,000 mm

  • Thickness: 4 – 80 mm

• Workpiece stacking: max. 2 pieces

• Vector speeds:

  • X-axis (clamps): 138 m/min

  • Y-axis: 80 m/min

  • Z-axis: 50 m/min

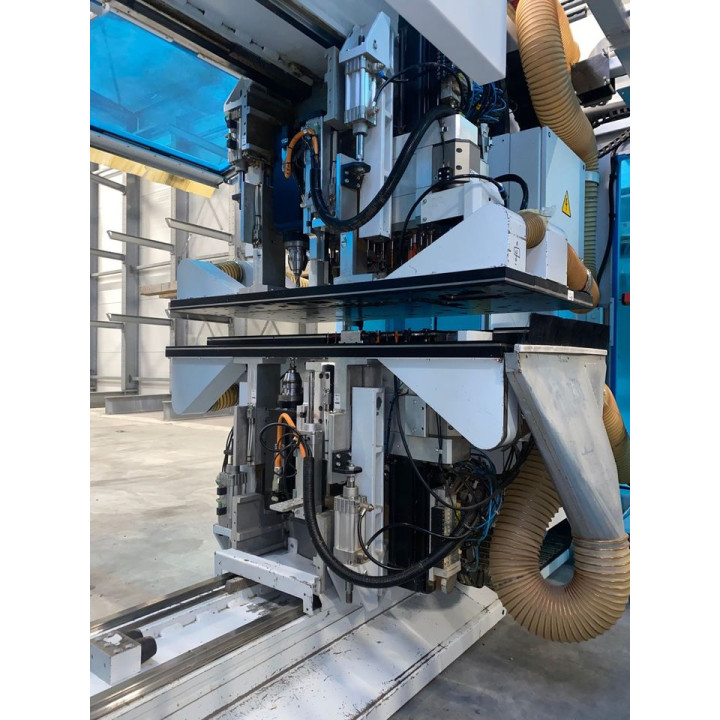

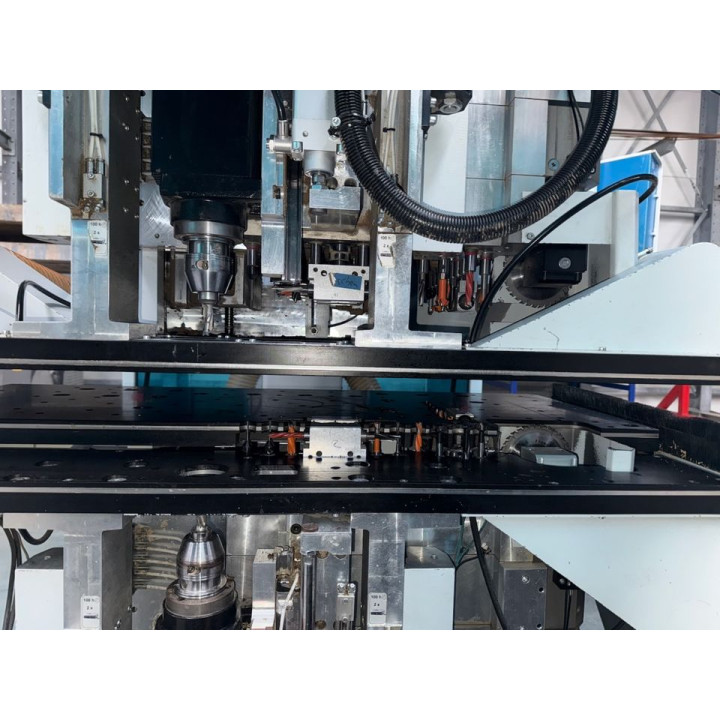

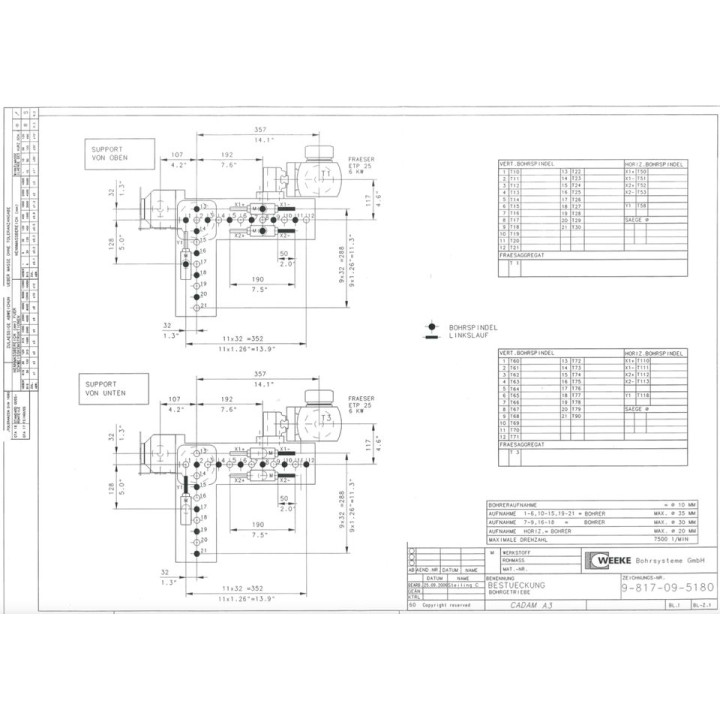

Processing Units / Aggregates:

• Vertical drilling: 2 V 21 HIGH SPEED 7,500 rpm

• Horizontal drilling: 2H4X / 2Y

• Grooving / Saw unit: N2 X-Y 90°

• Milling unit: F2-ETP 6 kW

• Barcode reader: Datalogic

Machine is fully operational and ready for production.
