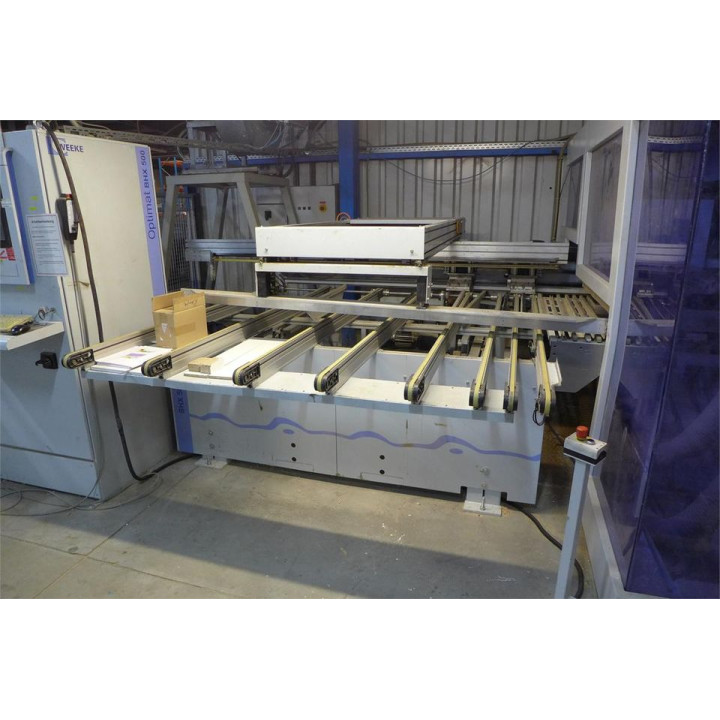

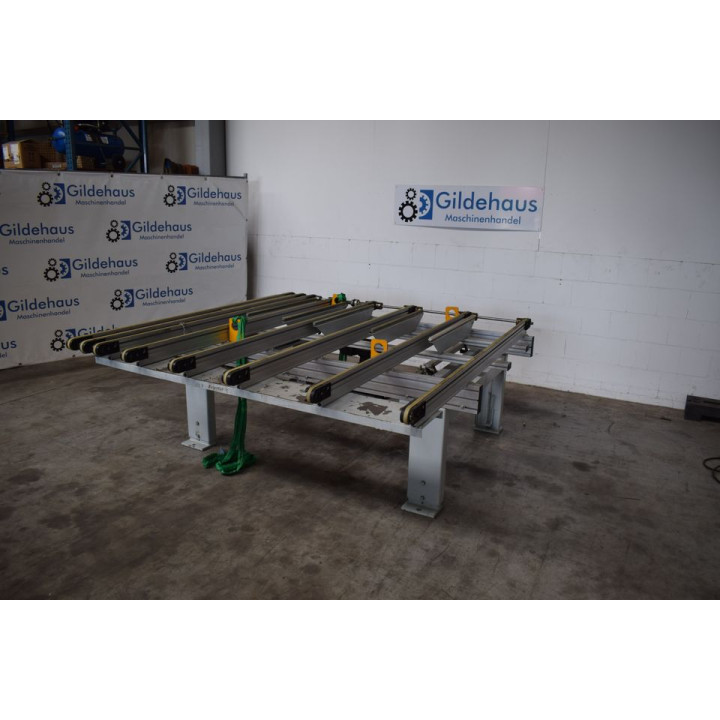

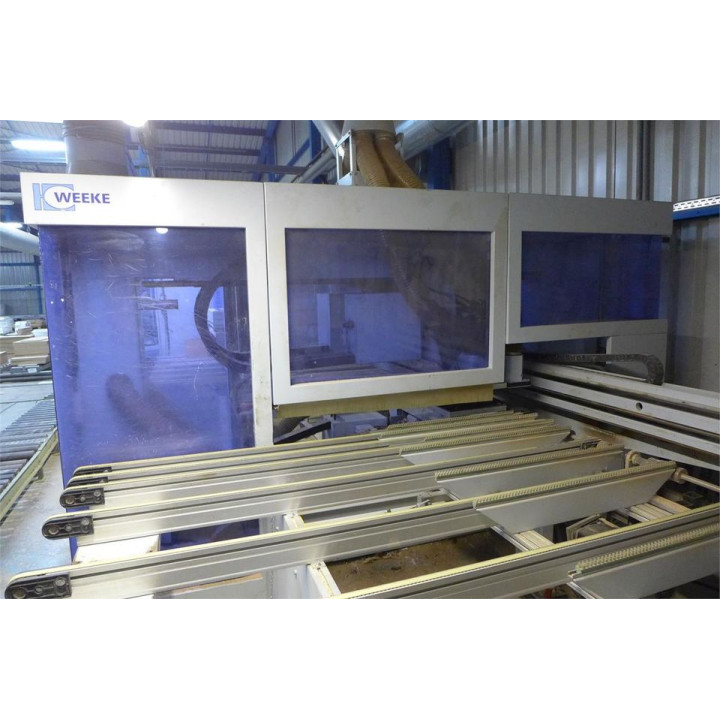

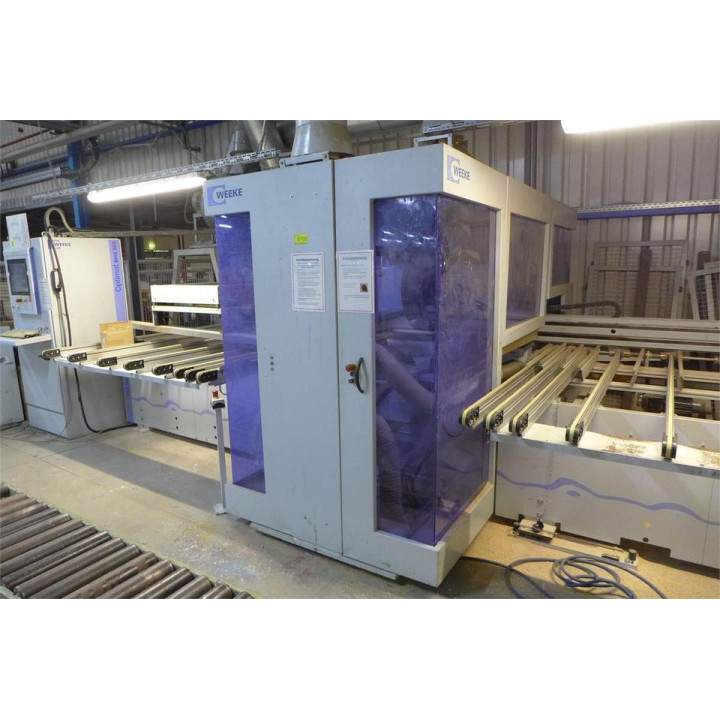

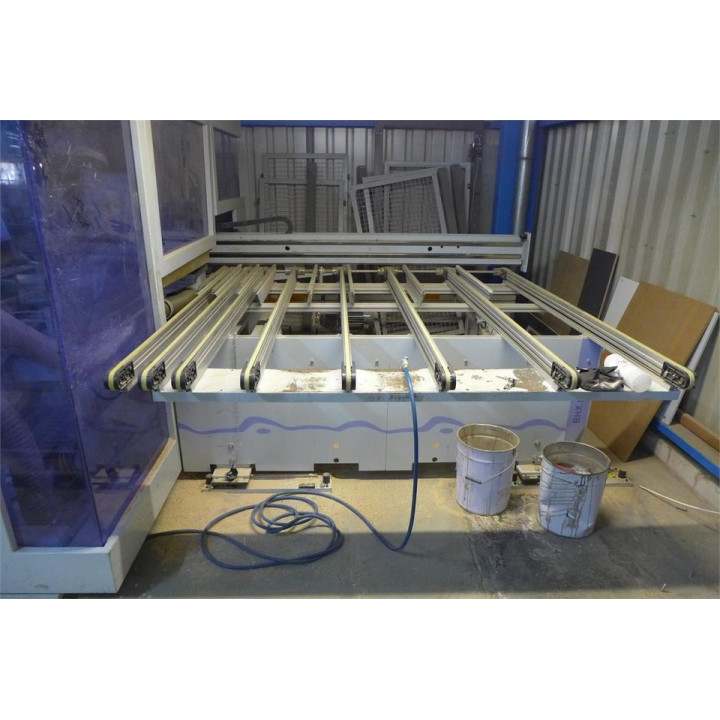

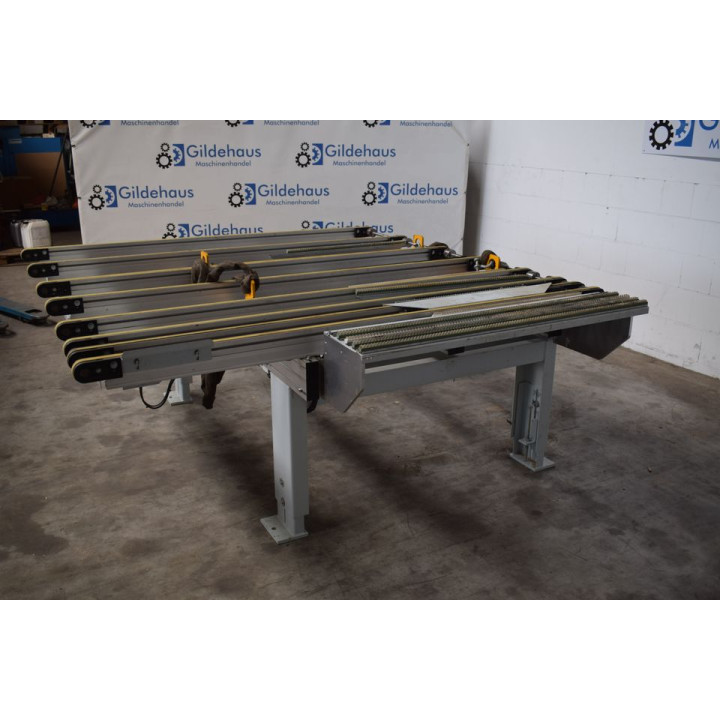

Weeke BHX 500

WEEKE BHX 500 CNC Machining Center

Manufacturer: Weeke
Model: BHX 500
Year of Manufacture: 2008

The WEEKE BHX 500 is a high-performance CNC machining center designed for wood and panel processing applications.
The machine is dismantled and available for immediate delivery.

Machining Dimensions

• X-axis: 2,500 mm

• Y-axis: 1,300 mm

• Z-axis: 4 – 80 mm

Machine Configuration

• Number of milling units: 2

• Number of drilling units: 2

• Vertical drilling spindles: 72

• Horizontal drilling spindles:

  • X-direction: 16

  • Y-direction: 4

• Grooving saw: 90° swiveling

Axis Speeds

• X-axis: 130 m/min

• Y-axis: 80 m/min

• Z1-axis: 50 m/min

• Z2-axis: 27 m/min

Technical Details

• Maximum spindle speed: 18,000 rpm

Condition

• Machine condition: Dismantled

• Availability: Immediate
