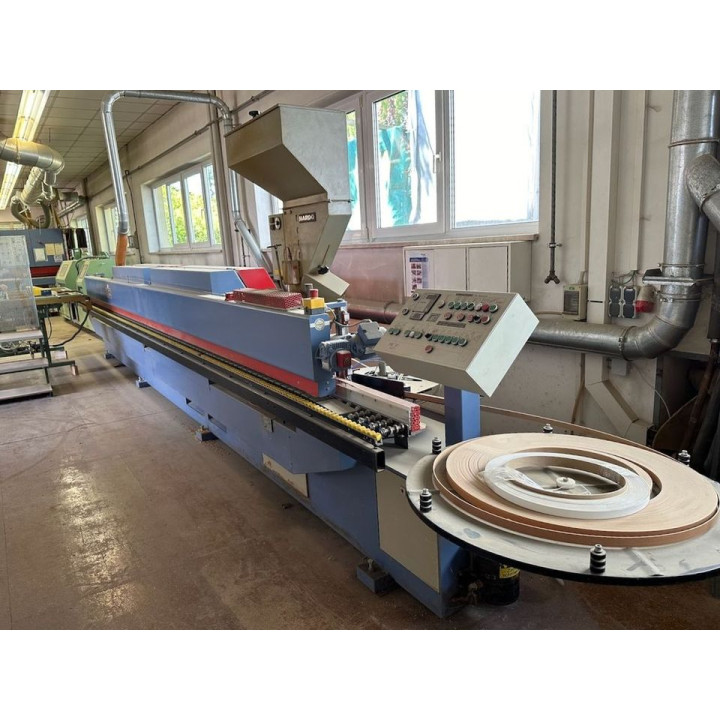

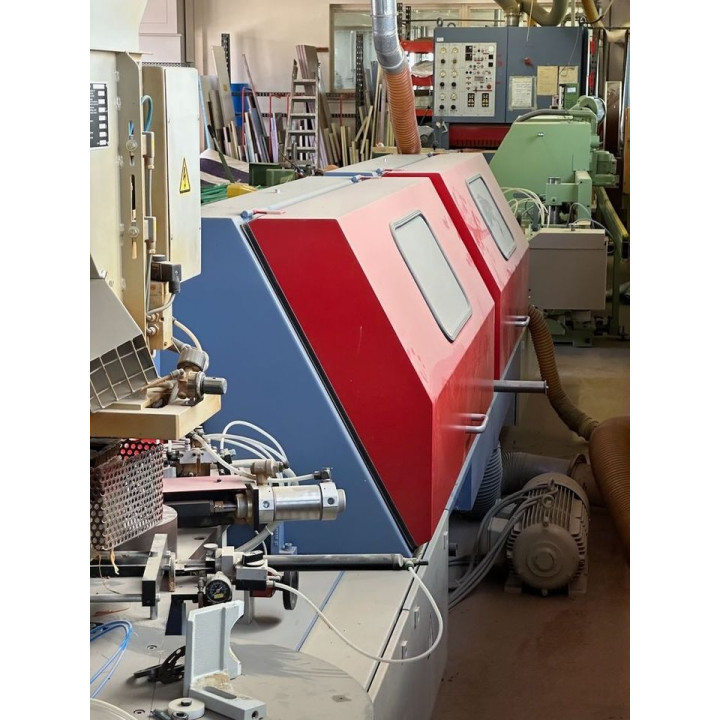

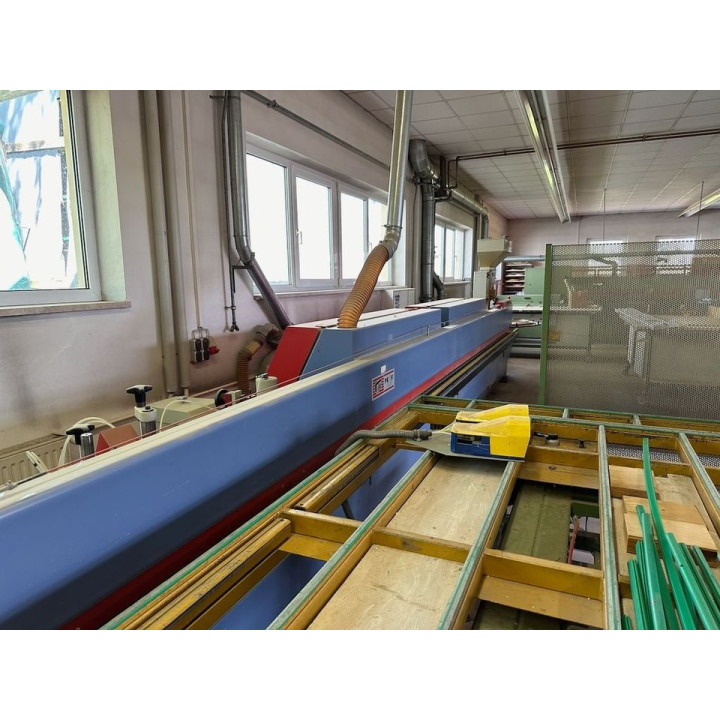

Edge Banding Machine OTT PROFImatic 258

Edge Banding Machine

OTT PROFImatic 258

Machine Type: Edge Banding Machine

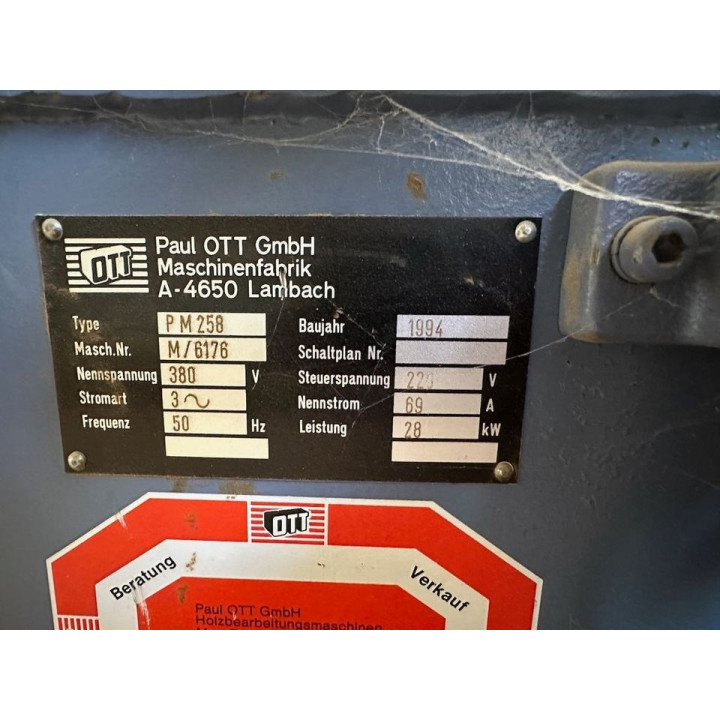

Model: OTT PROFImatic 258
Year of Manufacture: 1994
Operating Hours: 5,373.33 h (as read)

General Condition

• Machine is fully operational and well maintained.

• All pneumatic air hoses were replaced approx. 2 years ago.

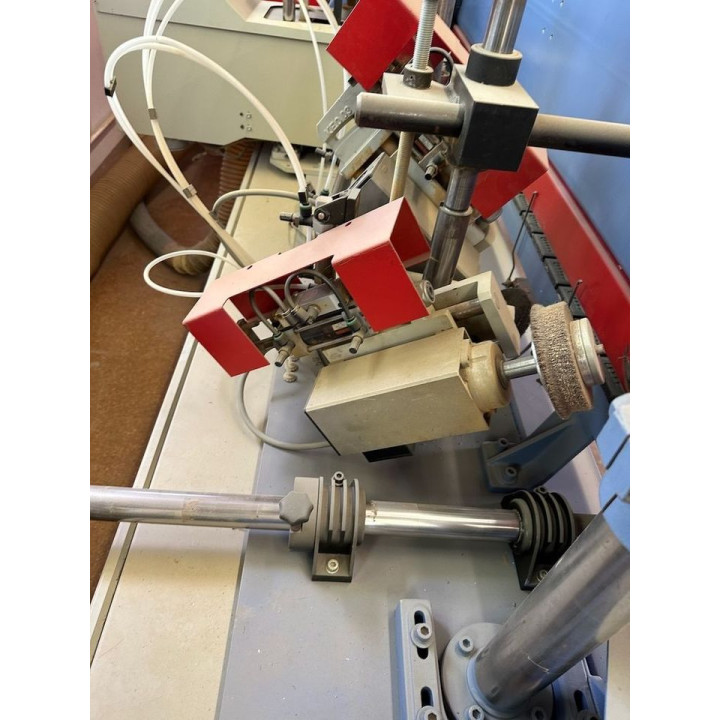

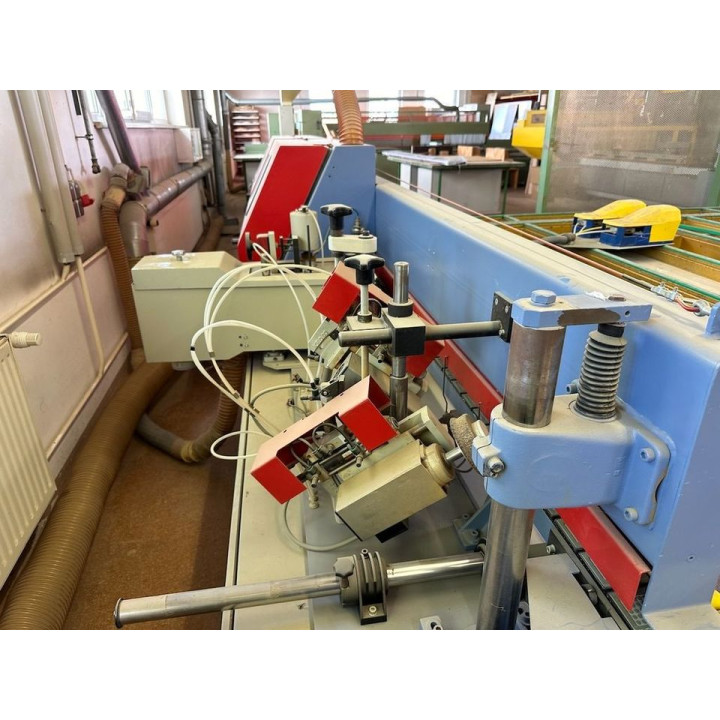

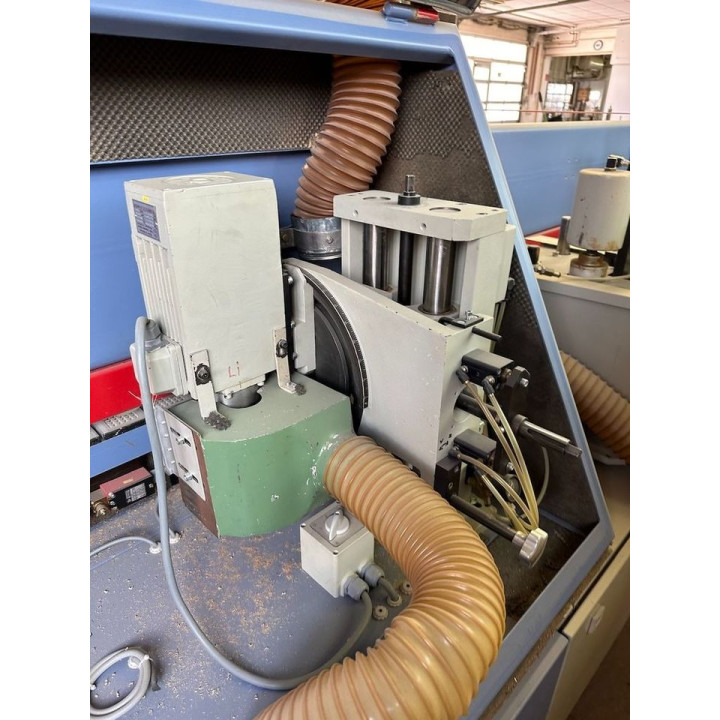

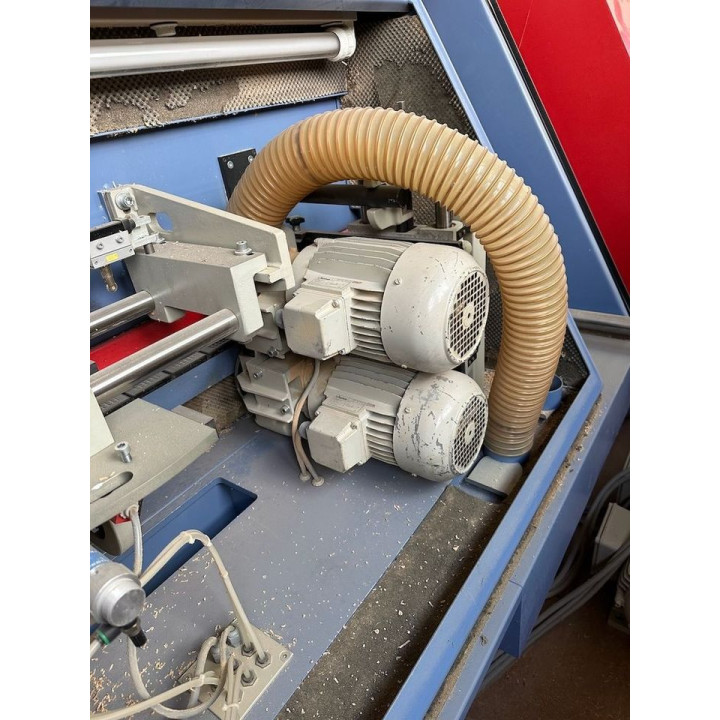

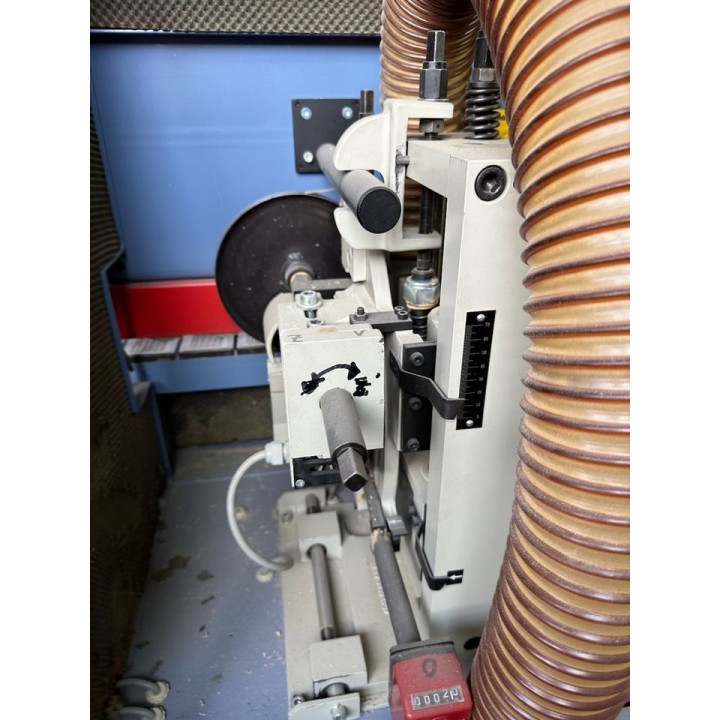

Processing Units & Equipment

• Upper pressure unit – KAM 4-2-01

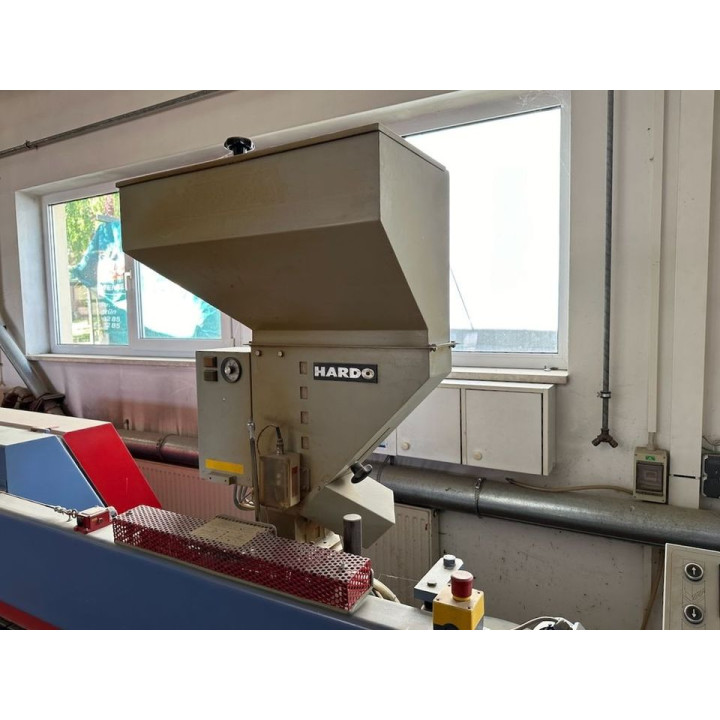

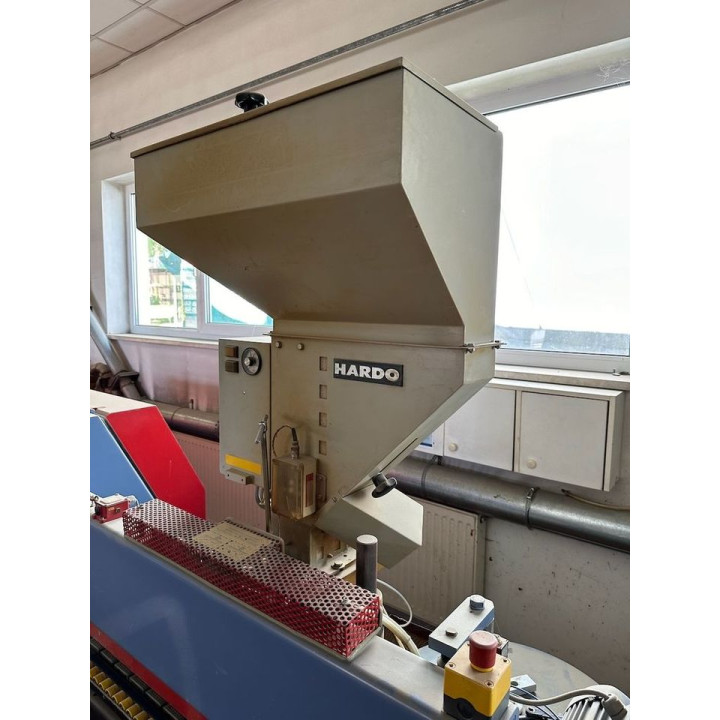

• Quick-heating glue pot – KAM 4-61-02.01

• Lower pressure unit – KAM 4-1-01

• Edge feeding table – KAM 4-4-01

• Automatic magazine for solid wood edges and foil

• Feed roller – KAM K4-51-01

• KAM synchronized foil cutter

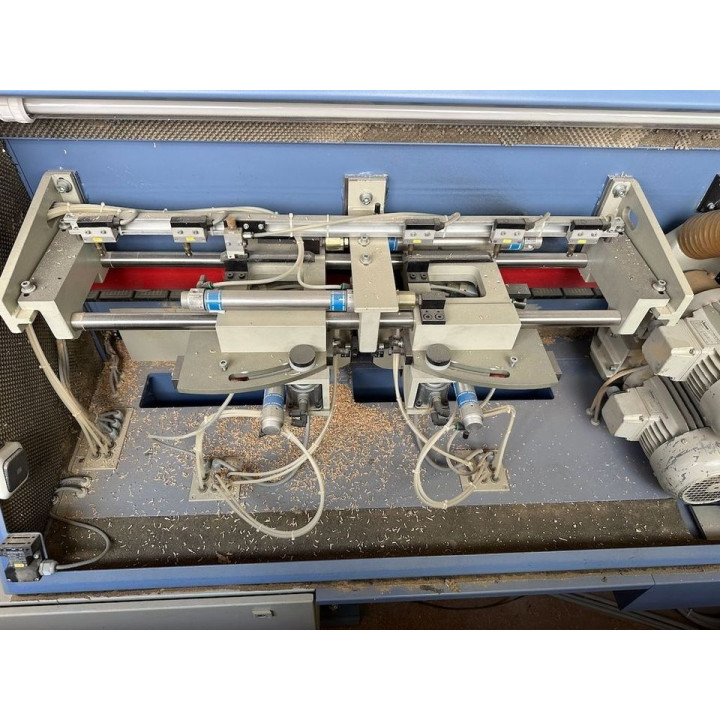

• End trimming unit – Model K17

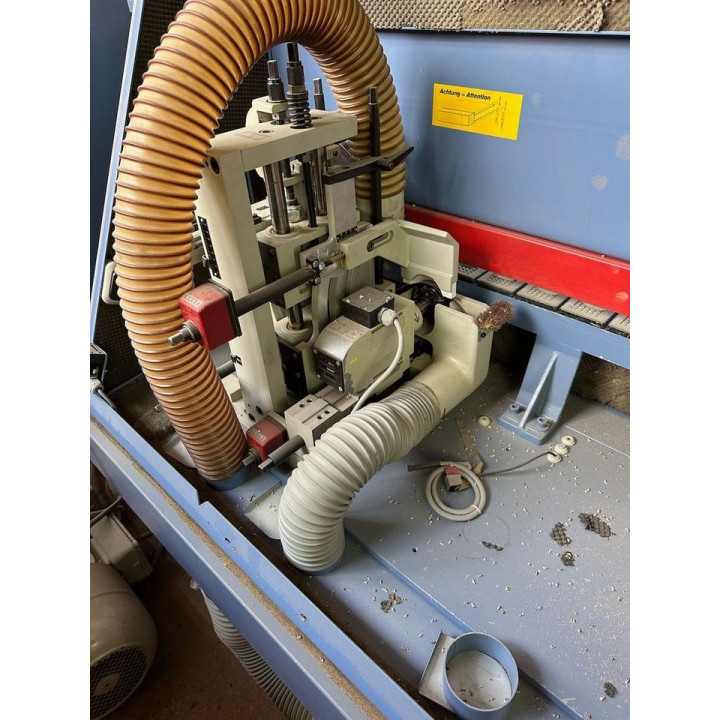

• Fixed milling unit – KAM 4-50-00 / Model NF 30.1

• Fine trimming unit – KAM 4-26-80

• Grooving unit – KAM 4-32-01

• Corner rounding unit

• Sanding unit

• Scraper unit

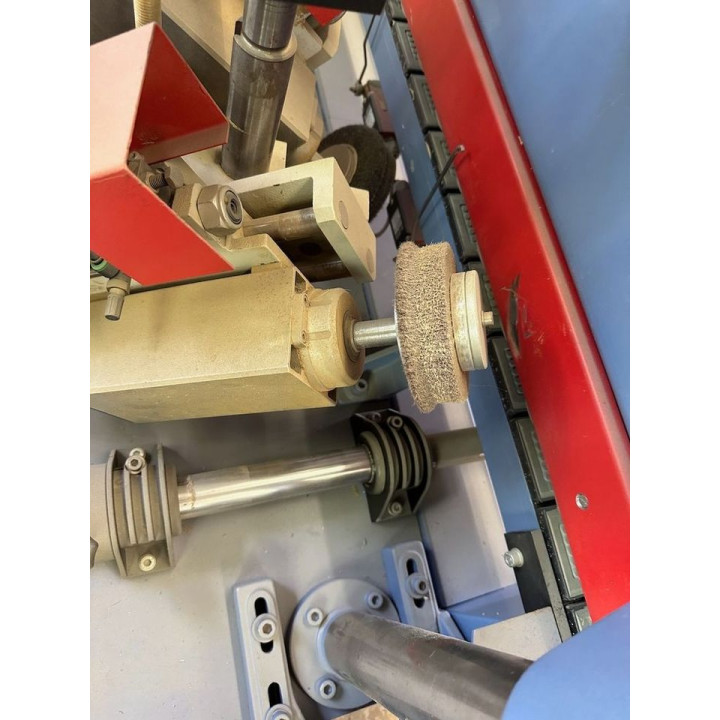

• Oscillating edge cleaning unit – KE-0

Technical Specifications

• Maximum solid wood edging thickness: 25 mm

• Maximum roll material thickness: 3 mm

• Feed speed: up to 24 m/min

• Maximum workpiece height: 60 mm

• Minimum workpiece length: 150 mm

• Minimum workpiece width: 60 mm

Dimensions & Weight

• Dimensions (L x W x H): approx. 9,000 x 1,400 x 2,000 mm

• Weight: approx. 4,000 kg
