Edge Banding Machine OTT TWISTER – Fully Overhauled

Edge Banding Machine

OTT TWISTER – Fully Overhauled

Manufacturer / Model: OTT Twister
Year of Manufacture: 2015
Condition: Completely overhauled
Availability: From January 2026

Workpiece Dimensions

• Minimum workpiece width: 70 mm

• Minimum workpiece height: 8 mm

• Maximum workpiece height: 60 mm

• Minimum workpiece length: 150 mm

Performance

• Feed speed: 14 – 20 m/min, stepless

• Machine length: 7,300 mm

• Weight: approx. 3,500 kg

Equipment & Units

• Double upper pressure system

• ADK – Automatic continuous lubrication

• CM Combimelt gluing unit

• Second gluing unit

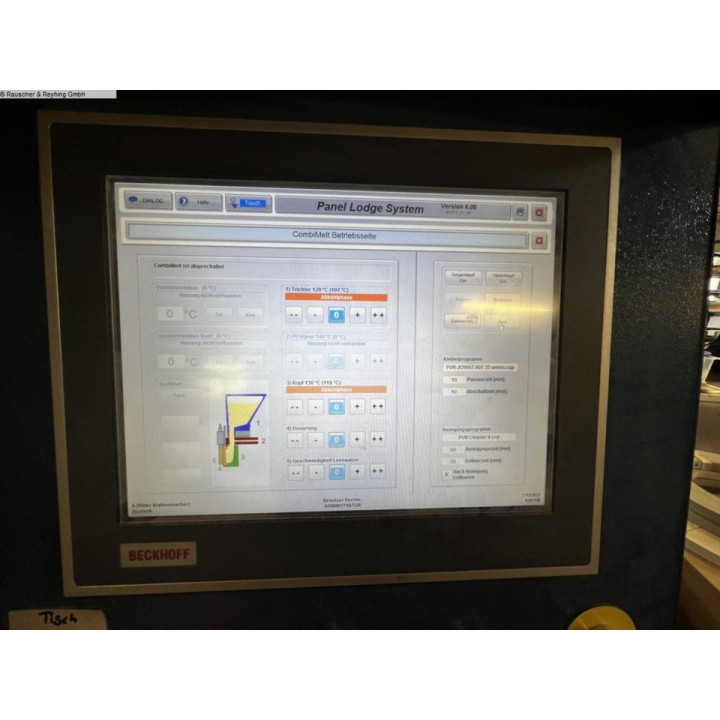

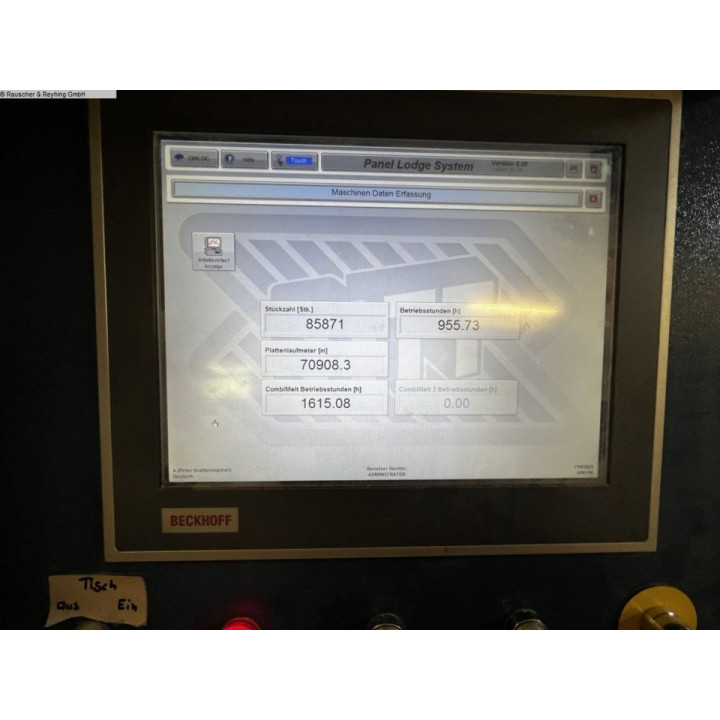

• 15” touch screen monitor

• FK – Jointing milling unit

• AKM – Edge magazine

• RMV 40 – Automatic roll magazine

• K13 – Double end trimming unit

• BFC – Flush milling unit

• HFT – Fine trimming unit

• AKF – Automatic corner rounding

• ZKc – Radius scraper blade

• ZKf – Flat scraper blade

• ZK HG – Second radius scraper

• AS – Antistatic spray unit

• GS – Release agent spray unit

• RS – Cleaning set

• WE – Angular infeed support

• LT – Air cushion infeed table

Overhaul & Refurbishment

• Machine completely dismantled

• Dry ice cleaned

• Partially repainted

• New chain plates

• New upper pressure rollers

• New tools installed

➡️ Machine is in excellent technical and visual condition, ready for industrial production.
